Large item

Small item

Parameters

Computing platform

CPU

Qualcomm XR2, Kryo 585 core, 8-core 64-bit, the highest frequency is 2.84GHz, 7nm process technology

GPU

Adreno 650, clocked at 587MHz

Memory

6GB RAM, LPDDR4X

Flash

UFS3.0 256GB

WIFI

2X2 MIMO WIFI6 802.11 b/g/n/ac/ax, 2.4G/5G dual frequency

BT

BT5.1

Android

Android 10

Display

Screen

5.5 inch x 1 SFR TFT

Resolution

3664x1920,PPI:773

Refresh rate

72/90Hz

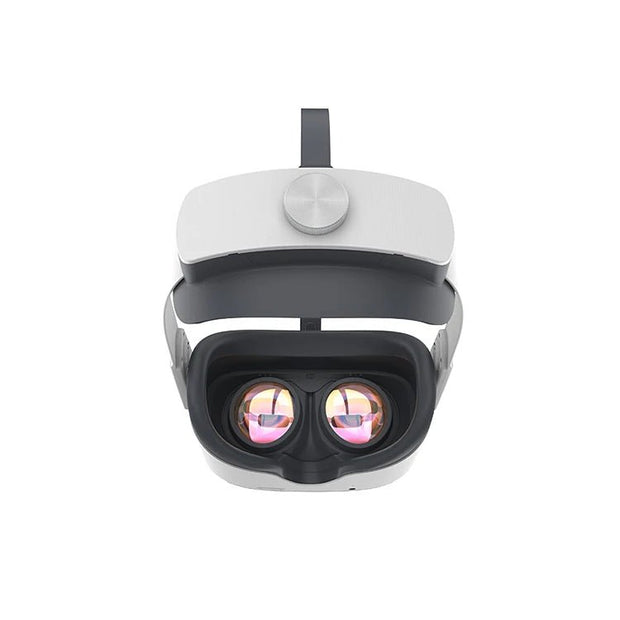

Optics

Field of view

98°

lens

Fresnel

Interpupillary distance

Support physical interpupillary distance adjustment, three gears: 58/63.5/69mm

Eye protection mode

TUV Low Blue Light Certification

sensor

9-axis sensor

1KHz sampling frequency

P-senor

Face wear sensing

Camera

Front camera

Fisheye camera (640x480@120Hz, FOV:166°) x 4, supports 6Dof head positioning

Interactive

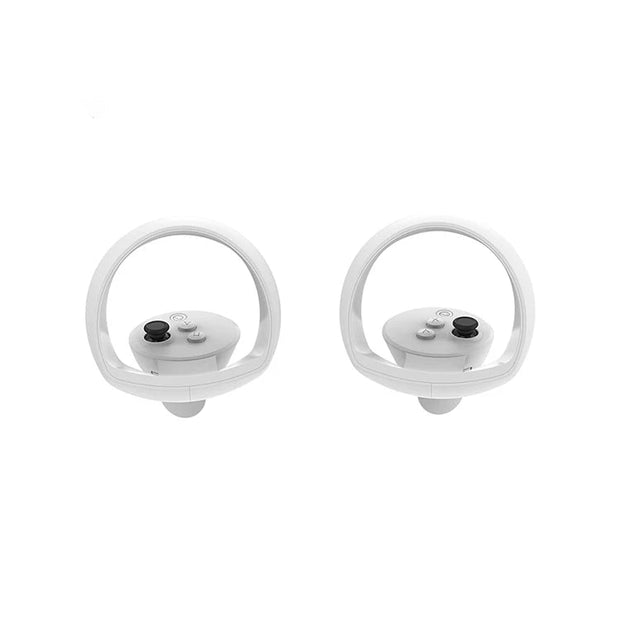

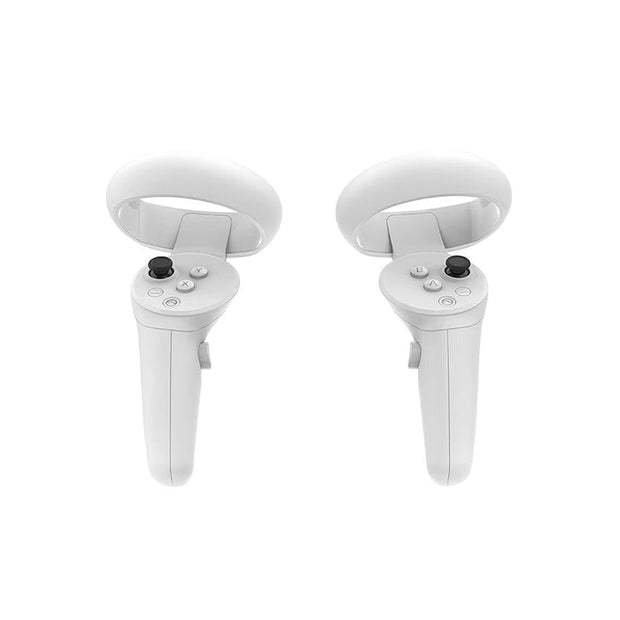

handle

6DoF somatosensory handle x 2, support optical positioning, support linear vibration motor

Body buttons

Power button, APP button (back button), confirm button, Home button, volume up, volume down

Design and ergonomics

weight

Approximately 395g (not including strapping mechanism)

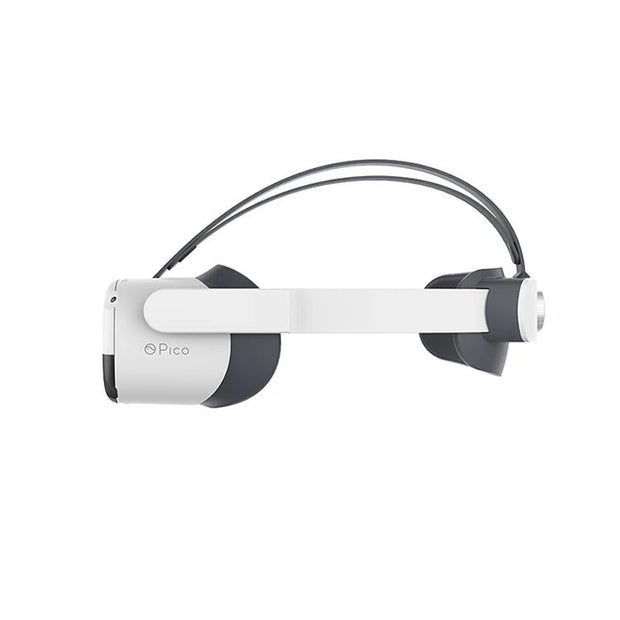

Bandage

Hard strap design, support knob adjustment, side straps can be rotated upwards for quick wearing

Foam

Replaceable PU foam

Ergonomic design

The front helmet and the rear battery are composed of a more reasonable mechanical sharing design

power supply

Charge

QC3.0 fast charging

battery capacity

5300mAh

acoustics

speaker

Built-in dual stereo speakers

microphone

Dual microphone noise reduction, omnidirectional microphone

transmission

USB Type-C 3.0

1. USB3.0 data transfer

2. 5V/1A OTG extended power supply capacity

3. USB3.0 OTG extended function (requires adapter cable support)

4. Support DP video output (support adapter cable to cast helmet content to TV, stable and reliable connection)

DP interface

Connect to a PC through a customized DP cable and experience 4K resolution SteamVR content

3.5mm audio interface

Connect to a third-party stereo headset for use

Indicator light

Led light

Three-color LED displays power-on, power-off, and charging status
